“Strong, Rugged, Ready for Action”

Designed for equestrian, agricultural, contractors and other customers as an all round heavy duty, reliable tipping trailer. The DT100 features an electric operated tipping function with an automatic latch/unlatching tailgate as standard alongside twin pivoting wheels for ultimate stability.
  • Electric Hydraulic Tipping
  • Twin Pivoting Axles for easy travel over rough ground
  • Auto latching tailgate for easy emptying
  • 1 Ton payload capacity
  • Full Galvanised finish for long lasting durability
  • Off-Road Only

Built for Work

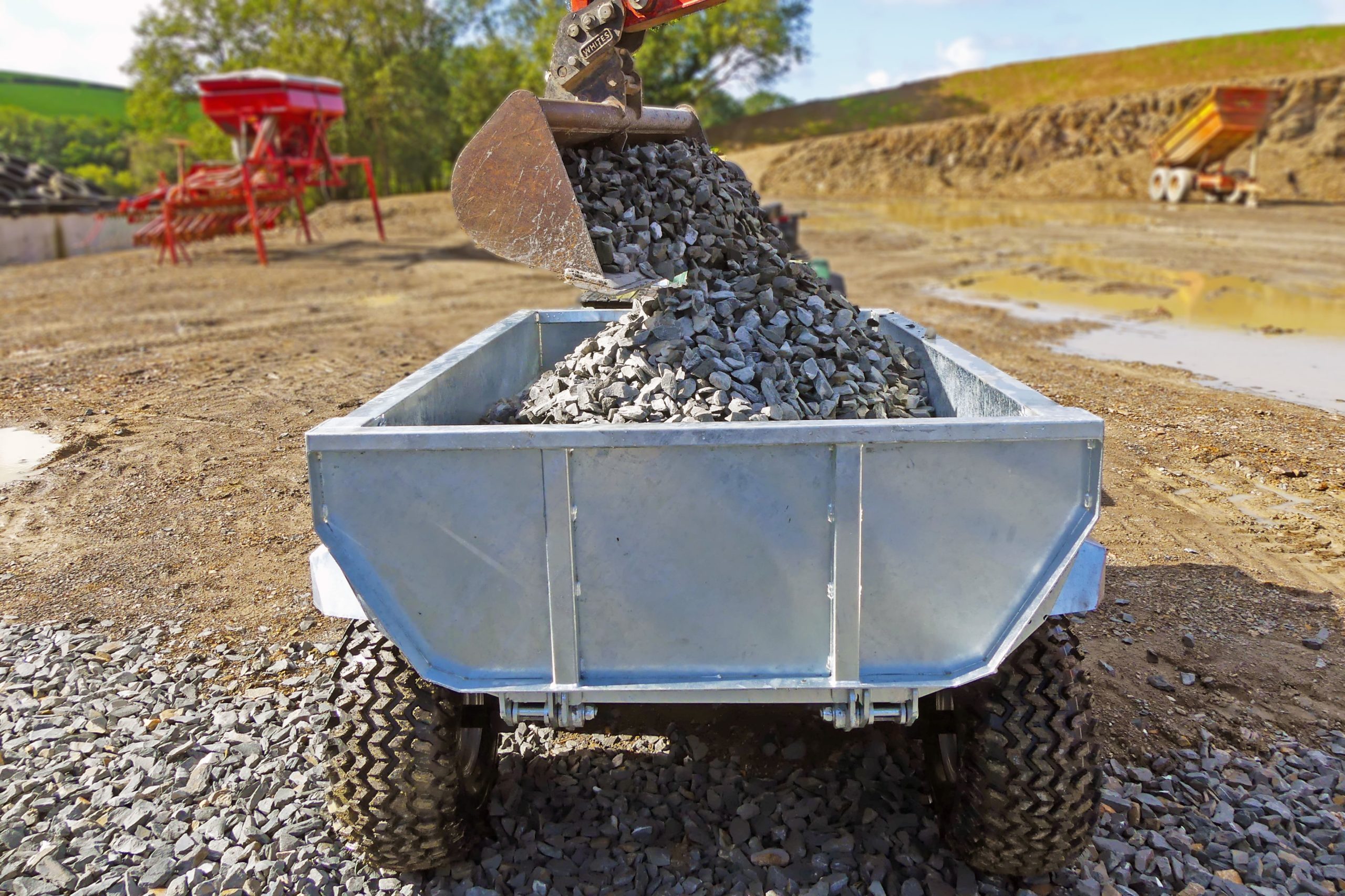

The DT100 is an easy to use, reliable work horse built to high standards and tolerances. It’s 1 ton payload capacity is perfect for moving soil, dung, stone plus much more with ease and paired with a twin pivoting axle including flotation tyres allows for easy towing off-road.

Hassle Free Emptying

A unique automatic latch/unlatch system is installed in the rear tailgate alongside a large 50° tipping angle for hassle free emptying. The DT100 is installed with an electric operated hydraulic system, complete with wired hand remote that attaches to the back of your ATV, UTV of 4×4 and on-board battery for the ultimate convivence.

Extension Sides

Extension sides are now available as an option on our popular DT100 ATV Tipping Trailers. Perfect for the loading of lighter materials such as Horse Manure, Leaves etc, the extension sides increase the height of the DT100 by 300mm allowing for greater capacity.

Flat Bed Body Option

If you are looking for something more utilitarian, then look no further.

The DT100 will also be available with a Flat Bed Body option that replaces the standard dump body. This Flat Bed option retains the hydraulic tipping function and will be fully galvanised with removeable, drop down sides for full flexibility of carrying loads. A true multi-tasker.

Downloads

Manuals, product schematics & other downloads.

Downloads Area

Dealers

Dealerships can easily be found with our interactive map.

Find a dealer

Purchase Now

Visit our online store to see options.

Build & Order

Enquire

Got questions? Email, phone or chat with us.

Enquire about this product

Options

LED Light Kit

Optional LED Integrated light kit for maximum visibility

Build & Order
Large tipping trailer ft100

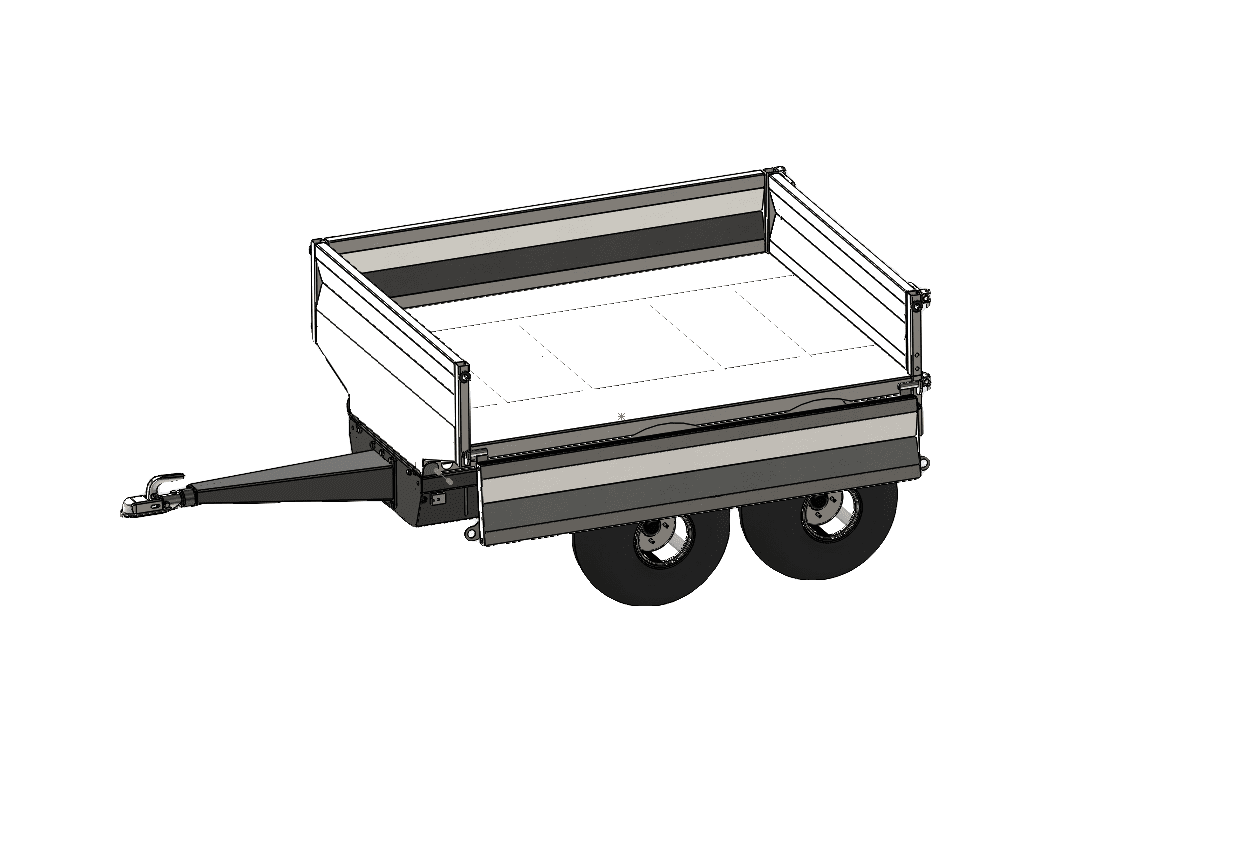

Flat Bed Option

The Flat Bed option replaces the dump body but still retains the hydraulic tipping function and will be fully galvanised with removeable, drop down sides for full flexibility of carrying loads.

Build & Order

Extension Sides

Extension sides are now available as an option on our popular DT100 ATV Tipping Trailers. Perfect for the loading of lighter materials such as Horse Manure, Leaves etc, the extension sides increase the height of the DT100 by 300mm allowing for greater capacity.

Build & Order

Wireless Remote

Wireless remote kit upgrade, no need for trailed cables that can get snagged or damaged – a simple wireless remote for easy control of the tipping mechanism.

Build & Order
DT100/FT100 Wireless Remote Kit

Specification

Weight (Unladen)335kg
Max Weight (Laden)1400kg
Volume (Heaped)1.7m3
Tyre Size4 x 22x11x8"
Pump Capacity4.5l @ 160 Bar
Tipping Angle50° (Approx)

Literature

DT100 ManualDownload
DT100 Parts DrawingDownload

Dimensions
