TRAILED STOCK FEEDER

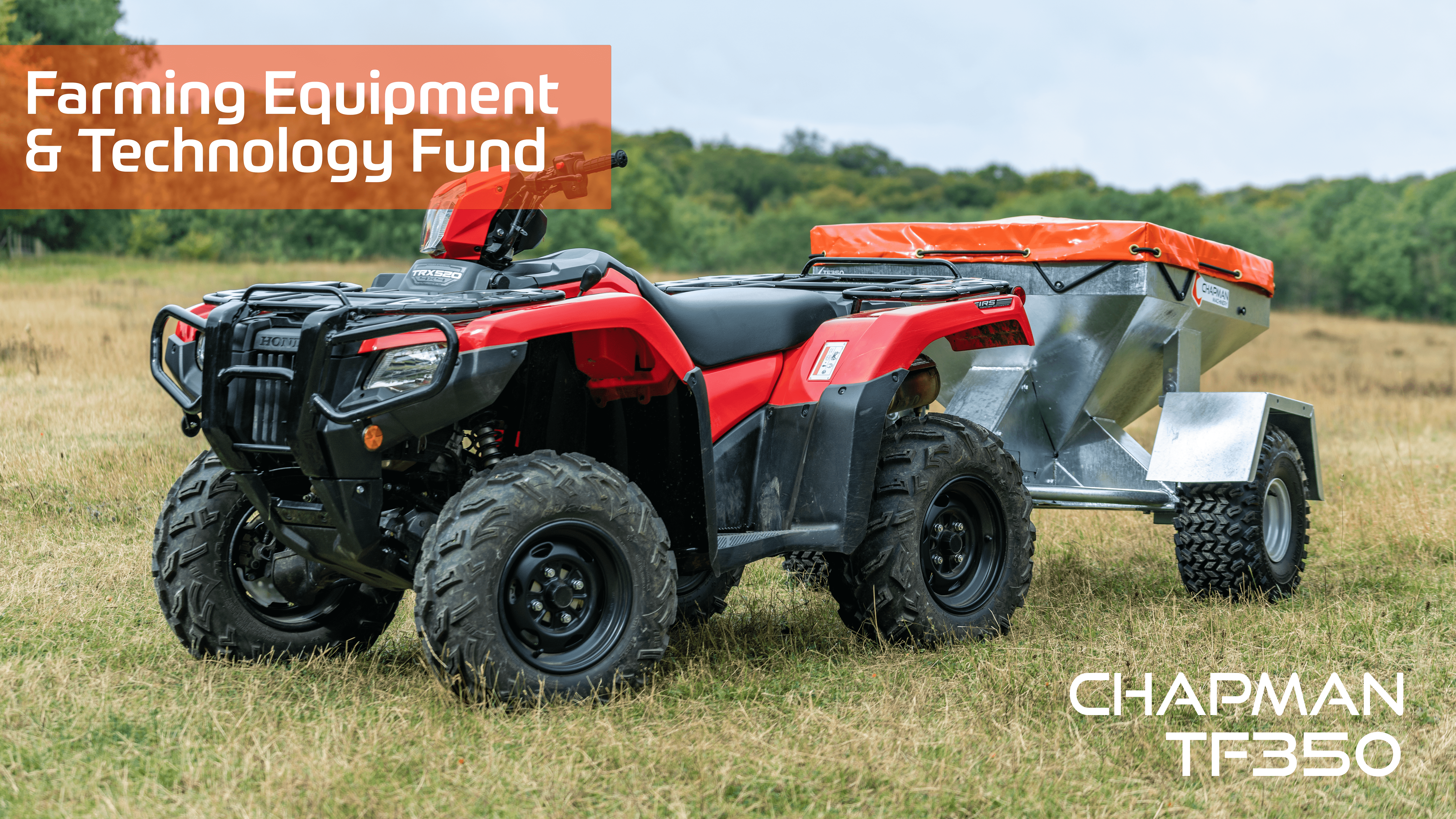

TF350 Livestock Feeder / Sheep Snacker is the perfect tool for feeding sheep, cattle and other livestock in a easy and effective manner, behind an ATV, UTV, 4×4.
More details below

TF350

SCROLL DOWN

“Saves you time and hassle”

The TF350 Trailed Stock Feeder (Sheep Snacker) features fully galvanised all-steel construction & electronic operation with high-visibility digital counter ensure the right amount of feed is dispensed, exactly where you want it.

Simple design, quality construction, and galvanised finish for a long-lasting, reliable machine.

  • 300/500kg capacity spaced drop sheep/cattle feeder
  • Electric operation and digital counter
  • Fully galvanised, robust construction
  • Industry-leading ground clearance
  • Choice of wheel/tyre options
  • Unique countdown function

Leave feeding by bags in the past

Don’t mess around with bagged feed and troughs, the TF350 Livestock Feeder / Sheep Snacker allows you to drop the right amount of feed in the right place each time.

Drop size is variable from 0.5kg to 2kg (approx), and drop spacing is controlled by the forward speed of the ATV, UTV or Quad with a 300kg hopper capacity as standard, and optional extension sides taking capacity to 500kg,

Focus on your stock

The digital counter ensures you know exactly how much has been deposited and allows you to focus on checking stock condition.

Operable as either a count-up timer, from 0 drops upwards, or as a countdown counter, whereby the desired number of drops is set, and the machine will deposit exactly that amount of feed, simply and reliably each and every time.

Electronic drive

The electronic drive system on the TF350 stock feeder has few moving parts and only rotates when in operation, reducing wear and tear, and allowing towing over longer distances. All electronic components are IP67 rated, for use in the toughest conditions.

Simple operation is simple along with a large, brightly back-lit display which is easy to read even in the worst conditions. The countdown function is ideal for reliably dropping exactly the right amount of feed and freeing the operator to focus solely on checking stock condition.

Industry leading ground clearance

The TF350 trailed sheep snacker by Chapman Machinery is designed to be exceptionally strong, yet lightweight enough for use in wet, wintry conditions. Steel, fully galvanised chassis and hopper are extremely heavy duty, yet light to tow. Steel will not fade, become brittle and crack as plastic hoppers can!

Conventional drum-operated machines suffer from low ground clearance – the TF350 has a minimum 300mm ground clearance, and when combined with the steel ‘belly pan’ means the TF350 can go anywhere the towing vehicle can go.

Downloads

Manuals, product schematics & other downloads.

Downloads Area

Dealers

Dealerships can easily be found with our interactive map.

Find a dealer

Purchase Now

Visit our online store to see options.

Build & Order

Enquire

Got questions? Email, phone or chat with us.

Enquire about this product

Options

Oversize Tyres

25x13x9″ Balloon Traction tyres in place of standard 22x11x8″ for improved grip on steep slopes, higher ground clearance and lower ground pressure. Other sizes are available to suit specific applications, please contact us or your nearest distributor for details.

Build & Order

Extension Sides

Increases hopper capacity by 0.25m³ (200kg) per extension. Bolt-on kit for direct fitment, utilising existing tonneau cover.

Build & Order

Nudge Bar

Livestock fender bars wrap-around the front of the machine and back to mudguards to keep livestock from becoming jammed between towing vehicle and feeder when feeding. Especially suited for feeding sheep.

Build & Order

Twin Axle

Twin beam axles in place of standard axles assemblies for smoother towing over rough terrain and reduced ground pressure. Note: This option requires the removal of mudguards.

Build & Order

Additional Control Box

Additional control box to allow the machine to be used behind an additional towing vehicle without swapping the control electrics over – ideal if the feeder is used behind multiple vehicles, eg. ATV and 4×4.

Build & Order

Specification

Capacity320 litre (aprox. 300kg feed)
Capacity w/ Extension Sides:550litre (approx 500kg Feed)
Weight130kg (Unladen)
Ground Clearance300mm
Ground Clearance w/ 25x13x9 Oversize Tyre Option350mm
Drops per minute25
Drop size0.25-2kg (min / max may be limited by feed type)
Supply Voltage13.8V Nominal [10v / 18v (min / max)]
Operating Temperature-15/+50°C (min/max)
Incorrect Polarity ProtectionYes
Overload Thermal Rest Time30 Seconds
Tyre Size22x11x8″ or 25x13x9″ (optional)

Literature

TF350 ManualDownload
TF350 Parts DrawingDownload

Dimensions

Find a Dealer

One of our dealerships can easily be found with our interactive map.

I bought the trailed snacker to feed beef cattle, with the bigger wheels and 500kg capacity it’s great behind my utv, easy to use and very robust, highly recommended.

Martin Hooper3rd June 2020
